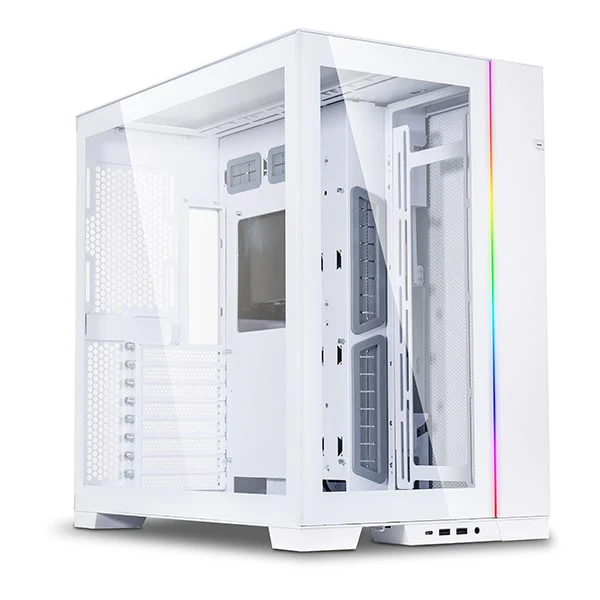

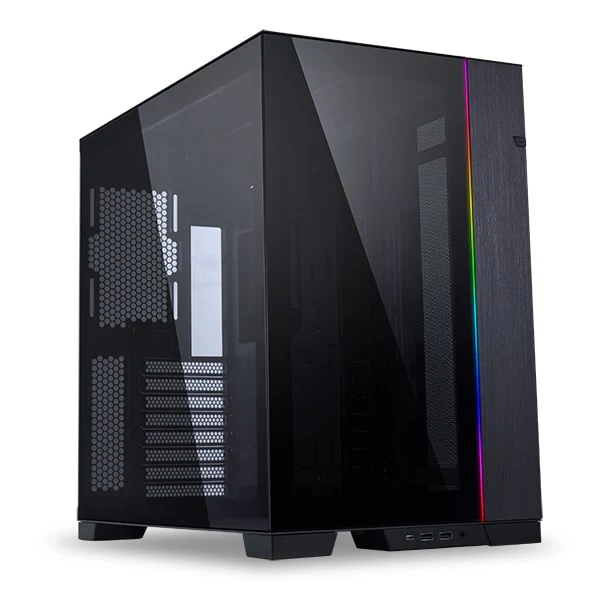

Lian LI O11D EVO Mid Tower Case, Harbor Grey

MODEL NAME

O11 DYNAMIC EVO

MODEL NO.

O11DEX BLACK, O11DEW WHITE, O11DEG GREY

COLOR

Black, White, Harbor Grey

DIMENSION

(D)465mm × (W)285mm × (H)459mm

MATERIAL

4mm Aluminum, 4mm Tempered Glass, 1mm Steel Structure

MOTHERBOARD SUPPORT

E-ATX (width: under 280mm)/ATX /M-ATX/ITX

PSU SUPPORT

220mm

FAN SUPPORT

Top: 120mm × 3 or 140mm × 2, Side: 120mm × 3 or 140mm × 2, Bottom: 120mm × 3 or 140mm × 2, Rear: 120mm × 1, On Drive Cage: 60mm × 1

RADIATOR SUPPORT

Top: 360mm × 1 or 280mm × 1
*Total max thickness: 87.5mm
Side: 360mm × 1 or 280mm × 1
*Inner scenario total max thickness:
83mm(120mm fan on top and bottom)
63mm(140mm fan on top and bottom)
*Outer scenario total max. thickness：
120mm(120mm fan on top and bottom)
100mm(140mm fan on top and bottom)
Bottom: 360mm × 1
*Total max thickness: 87.5mm

DRIVE SUPPORT

Bottom：2.5” SSD × 4 or 3.5” HDD × 2
Side：2.5” SSD × 4 or 3.5” HDD × 2
Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1
Cable Management Bar：2.5” SSD × 2
*Only 9 sets of 2.5” SSD mounting pads are provided

GPU LENGTH CLEARANCE

426 mm

CPU HEIGHT CLEARANCE

167 mm

EXPANSION SLOTS

8

I/O PORTS

2 × USB 3.0
1 × USB 3.1 TYPE-C,
1 × HD AUDIO/ MIC
LED Color and Mode button
Reset Button
Power Button

Dust Filter

Bottom × 1
